CDLF輕型不銹鋼立式多級離心泵結構圖及性能參數
時間：2013-8-21 來源：揚子江泵業 瀏覽數：2367
CDLF輕型不銹鋼立式多級離心泵是吸取了國內外先進技術而設計制造的非自吸立式多級離心泵，采用標準立式電機和快裝式機械密封，更換非常方便。
CDLF輕型不銹鋼立式多級離心泵的過流部分均采用不銹鋼（304\316）材料制成，可適用于輕度腐蝕性介質。該產品可替代國外CR、CRN等同類產品。產品投放市場后，以其高效節能、質量可靠、使用范圍廣等特點，深受廣大用戶的喜愛。
CDLF輕型不銹鋼立式多級離心泵其大優點是水力模型設計先進，高效率，高節能。水泵內部葉輪、泵殼及其主要配件采用不銹鋼沖壓成形，流道特別光滑，軸瓦、軸套用硬質合金，具有超強的使用壽命，避免產生二次污染。軸封采用耐磨機械密封，無泄漏。電機采用Y2鉛外殼，進口軸承，絕緣等級F級。泵運轉平穩，低噪音，整機質量可靠，外形美觀、體積小、重量輕、運輸方便，是理想的綠色、環保、節能的水泵。
CDLF輕型不銹鋼立式多級離心泵產品特征：
1、采用優良的水力模型和先進的制造工藝，大大提高泵的性能及使用壽命。
2、由于軸封采用材料為硬質合金及氟橡膠的機械密封，可提高泵運行的可靠性及輸送介質的溫度。
3、泵的過流部分采用不銹鋼板沖壓焊接而成，使得泵可適用于輕度腐蝕性介質。
4、整體結構緊湊、體積小、重量輕、噪聲低、節能效果顯著，檢修方便。
5、泵的進水口與出水口位于泵座同一水平線上，可直接用于管路當中。
6、采用標準電機，用戶可方便地根據需要配備電機。
7、可根據用戶需要配備智能保護器，對泵干轉、缺相、過載等進行有效保護。
CDLF輕型不銹鋼立式多級離心泵產品用途：
供水：水廠過濾與輸送、水廠分區送水、主管增壓、高層建筑增壓。
工業增壓：流程水系統、清洗系統、高壓沖洗系統、消防系統。
工業液體輸送：冷卻和空調系統、鍋爐給水和冷凝系統、機床配套、酸性和堿性介質輸送。
水處理：超濾系統、反滲透系統、蒸餾系統、分離器和游泳池的水處理系統。
灌溉：農田灌溉、噴灌、滴灌。
CDLF輕型不銹鋼立式多級離心泵輸送介質：
1、稀薄、清潔、不含固體顆�；蚶w維的非易燃易爆介質。
2、諸如礦泉水、軟化水、純水、清油和其他輕化工介質。
3、泵主要材料為不銹鋼，可應用于抽送輕度腐蝕性介質。
CDLF輕型不銹鋼立式多級離心泵技術參數：
流量：1-22m3/h；
揚程：6-232m；
功率：0.37-15kw；
轉速：2900r/min；
口徑：φ25-φ50；
溫度范圍：-15℃-+120℃；
工作壓力：≤2.4Mpa。
CDLF輕型不銹鋼立式多級離心泵型號意義:

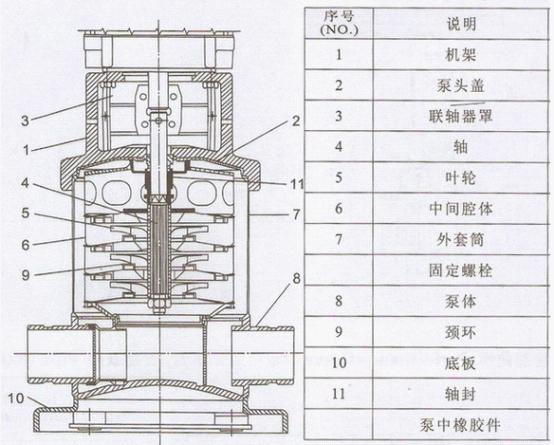

CDLF輕型不銹鋼立式多級離心泵結構圖：
CDLF輕型不銹鋼立式多級離心泵性能參數：
|
型號 |
揚程 |
流量 |
電機功率 |
轉速 |
|
(m) |
(m3/h) |
(KW) |
(r/min) |
|
|
CDLF1-2 |
11.5 |
1 |
0.37 |
2900 |
|
CDLF1-3 |
17 |
1 |
0.37 |
2900 |
|
CDLF1-4 |
22.5 |
1 |
0.37 |
2900 |
|
CDLF1-5 |
28 |
1 |
0.37 |
2900 |
|
CDLF1-6 |
33.5 |
1 |
0.37 |
2900 |
|
CDLF1-7 |
39 |
1 |
0.37 |
2900 |
|
CDLF1-8 |
45 |
1 |
0.55 |
2900 |
|
CDLF1-9 |
51 |
1 |
0.55 |
2900 |
|
CDLF1-10 |
57 |
1 |
0.55 |
2900 |
|
CDLF1-17 |
95 |
1 |
1.1 |
2900 |
|
CDLF1-19 |
106 |
1 |
1.1 |
2900 |
|
CDLF1-21 |
117 |
1 |
1.1 |
2900 |
|
CDLF1-23 |
128 |
1 |
1.1 |
2900 |
|
CDLF1-25 |
139 |
1 |
1.5 |
2900 |
|
CDLF1-27 |
150 |
1 |
1.5 |
2900 |
|
CDLF1-30 |
166 |
1 |
1.5 |
2900 |
|
CDLF1-33 |
183 |
1 |
2.2 |
2900 |
|
CDLF1-36 |
200 |
1 |
2.2 |
2900 |
|
CDLF2-2 |
15 |
2 |
0.37 |
2900 |
|
CDLF2-3 |
22 |
2 |
0.37 |
2900 |
|
CDLF2-4 |
30 |
2 |
0.55 |
2900 |
|
CDLF2-5 |
37 |
2 |
0.55 |
2900 |
|
CDLF2-6 |
45 |
2 |
0.75 |
2900 |
|
CDLF2-7 |
52 |
2 |
0.75 |
2900 |
|
CDLF2-9 |
67 |
2 |
1.1 |
2900 |
|
CDLF2-11 |
82 |
2 |
1.1 |
2900 |
|
CDLF2-13 |
98 |
2 |
1.5 |
2900 |
|
CDLF2-15 |
112 |
2 |
1.5 |
2900 |
|
CDLF2-18 |
136 |
2 |
2.2 |
2900 |
|
CDLF2-22 |
165 |
2 |
2.2 |
2900 |
|
CDLF2-26 |
198 |
2 |
3.0 |
2900 |
|
CDLF3-2 |
9 |
3 |
0.37 |
2900 |
|
CDLF3-3 |
14 |
3 |
0.37 |
2900 |
|
CDLF3-4 |
19 |
3 |
0.37 |
2900 |
|
CDLF3-5 |
23 |
3 |
0.37 |
2900 |
|
CDLF3-6 |
28 |
3 |
0.55 |
2900 |
|
CDLF3-7 |
32 |
3 |
0.55 |
2900 |
|
CDLF3-8 |
37 |
3 |
0.75 |
2900 |
|
CDLF3-9 |
42 |
3 |
0.75 |
2900 |
|
CDLF3-10 |
47 |
3 |
0.75 |
2900 |
|
CDLF3-11 |
51 |
3 |
1.1 |
2900 |
|
CDLF3-12 |
55 |
3 |
1.1 |
2900 |
|
CDLF3-13 |
60 |
3 |
1.1 |
2900 |
|
CDLF3-15 |
69 |
3 |
1.1 |
2900 |
|
CDLF3-17 |
79 |
3 |
1.5 |
2900 |
|
CDLF3-19 |
88 |
3 |
1.5 |
2900 |
|
CDLF3-21 |
98 |
3 |
2.2 |
2900 |
|
CDLF3-23 |
107 |
3 |
2.2 |
2900 |
|
CDLF3-25 |
116 |
3 |
2.2 |
2900 |
|
CDLF3-27 |
124 |
3 |
2.2 |
2900 |
|
CDLF3-29 |
133 |
3 |
2.2 |
2900 |
|
CDLF3-31 |
142 |
3 |
3 |
2900 |
|
CDLF3-33 |
151 |
3 |
3 |
2900 |
|
CDLF3-36 |
168 |
3 |
3 |
2900 |
|
CDLF4-2 |
15 |
4 |
0.37 |
2900 |
|
CDLF4-3 |
24 |
4 |
0.55 |
2900 |
|
CDLF4-4 |
32 |
4 |
0.75 |
2900 |
|
CDLF4-5 |
40 |
4 |
1.1 |
2900 |
|
CDLF4-6 |
48 |
4 |
1.1 |
2900 |
|
CDLF4-7 |
56 |
4 |
1.5 |
2900 |
|
CDLF4-8 |
64 |
4 |
1.5 |
2900 |
|
CDLF4-10 |
81 |
4 |
2.2 |
2900 |
|
CDLF4-12 |
95 |
4 |
2.2 |
2900 |
|
CDLF4-14 |
112 |
4 |
3 |
2900 |
|
CDLF4-16 |
129 |
4 |
3 |
2900 |
|
CDLF4-19 |
153 |
4 |
4 |
2900 |
|
CDLF4-22 |
178 |
4 |
4 |
2900 |
|
CDLF8-2/1 |
9 |
8 |
0.75 |
2900 |
|
CDLF8-2 |
18 |
8 |
0.75 |
2900 |
|
CDLF8-3 |
27 |
8 |
1.1 |
2900 |
|
CDLF8-4 |
36 |
8 |
1.5 |
2900 |
|
CDLF8-5 |
45 |
8 |
2.2 |
2900 |
|
CDLF8-6 |
54 |
8 |
2.2 |
2900 |
|
CDLF8-8 |
73 |
8 |
3.0 |
2900 |
|
CDLF8-10 |
92 |
8 |
4.0 |
2900 |
|
CDLF8-12 |
111 |
8 |
4.0 |
2900 |
|
CDLF8-14 |
130 |
8 |
5.5 |
2900 |
|
CDLF8-16 |
148 |
8 |
5.5 |
2900 |
|
CDLF8-18 |
167 |
8 |
7.5 |
2900 |
|
CDLF8-20 |
186 |
8 |
7.5 |
2900 |
|
CDLF12-2 |
20 |
12 |
1.5 |
2900 |
|
CDLF12-3 |
30 |
12 |
2.2 |
2900 |
|
CDLF12-4 |
40 |
12 |
3 |
2900 |
|
CDLF12-5 |
50 |
12 |
3 |
2900 |
|
CDLF12-6 |
60 |
12 |
4 |
2900 |
|
CDLF12-7 |
70 |
12 |
5.5 |
2900 |
|
CDLF12-8 |
80 |
12 |
5.5 |
2900 |
|
CDLF12-9 |
91 |
12 |
5.5 |
2900 |
|
CDLF12-10 |
101 |
12 |
7.5 |
2900 |
|
CDLF12-12 |
121 |
12 |
7.5 |
2900 |
|
CDLF12-14 |
141 |
12 |
11 |
2900 |
|
CDLF12-16 |
162 |
12 |
11 |
2900 |
|
CDLF12-18 |
183 |
12 |
11 |
2900 |
|
CDLF16-2 |
22 |
16 |
2.2 |
2900 |
|
CDLF16-3 |
34 |
16 |
3.0 |
2900 |
|
CDLF16-4 |
46 |
16 |
4.0 |
2900 |
|
CDLF16-5 |
58 |
16 |
5.5 |
2900 |
|
CDLF16-6 |
70 |
16 |
5.5 |
2900 |
|
CDLF16-7 |
82 |
16 |
7.5 |
2900 |
|
CDLF16-8 |
94 |
16 |
7.5 |
2900 |
|
CDLF16-10 |
118 |
16 |
11 |
2900 |
|
CDLF16-12 |
141 |
16 |
11 |
2900 |
|
CDLF16-14 |
166 |
16 |
15 |
2900 |
|
CDLF16-16 |
189 |
16 |
15 |
2900 |
|
CDLF20-1 |
10 |
20 |
1.1 |
2900 |
|
CDLF20-2 |
23 |
20 |
2.2 |
2900 |
|
CDLF20-3 |
35 |
20 |
4.0 |
2900 |
|
CDLF20-4 |
47 |
20 |
5.5 |
2900 |
|
CDLF20-5 |
58 |
20 |
5.5 |
2900 |
|
CDLF20-6 |
70 |
20 |
7.5 |
2900 |
|
CDLF20-7 |
82 |
20 |
7.5 |
2900 |
|
CDLF20-8 |
94 |
20 |
11 |
2900 |
|
CDLF20-10 |
118 |
20 |
11 |
2900 |
|
CDLF20-12 |
142 |
20 |
15 |
2900 |
|
CDLF20-14 |
166 |
20 |
15 |
2900 |
|
CDLF20-17 |
202 |
20 |
18.5 |
2900 |
|
CDLF32-10-1 |
9 |
32 |
1.5 |
2900 |
|
CDLF32-10 |
13 |
32 |
2.2 |
2900 |
|
CDLF32-20-2 |
20 |
32 |
3.0 |
2900 |
|
CDLF32-20 |
27 |
32 |
4.0 |
2900 |
|
CDLF32-30-2 |
33 |
32 |
5.5 |
2900 |
|
CDLF32-30 |
40 |
32 |
5.5 |
2900 |
|
CDLF32-40-2 |
46 |
32 |
7.5 |
2900 |
|
CDLF32-40 |
53 |
32 |
7.5 |
2900 |
|
CDLF32-50-2 |
60 |
32 |
11 |
2900 |
|
CDLF32-50 |
67 |
32 |
11 |
2900 |
|
CDLF32-60-2 |
74 |
32 |
11 |
2900 |
|
CDLF32-60 |
81 |
32 |
11 |
2900 |
|
CDLF32-70-2 |
88 |
32 |
15 |
2900 |
|
CDLF32-70 |
95 |
32 |
15 |
2900 |
|
CDLF32-80-2 |
102 |
32 |
15 |
2900 |
|
CDLF32-80 |
109 |
32 |
15 |
2900 |
|
CDLF32-90-2 |
117 |
32 |
18.5 |
2900 |
|
CDLF32-90 |
124 |
32 |
18.5 |
2900 |
|
CDLF32-100-2 |
131 |
32 |
18.5 |
2900 |
|
CDLF32-100 |
138 |
32 |
18.5 |
2900 |
|
CDLF32-110-2 |
146 |
32 |
22 |
2900 |
|
CDLF32-110 |
153 |
32 |
22 |
2900 |
|
CDLF32-120-2 |
160 |
32 |
22 |
2900 |
|
CDLF32-120 |
167 |
32 |
22 |
2900 |
|
CDLF32-130-2 |
174 |
32 |
30 |
2900 |
|
CDLF32-130 |
181 |
32 |
30 |
2900 |
|
CDLF32-140-2 |
189 |
32 |
30 |
2900 |
|
CDLF32-140 |
196 |
32 |
30 |
2900 |
|
CDLF42-10-1 |
16 |
42 |
3.0 |
2900 |
|
CDLF42-10 |
20 |
42 |
4.0 |
2900 |
|
CDLF42-20-2 |
32 |
42 |
5.5 |
2900 |
|
CDLF42-20 |
41 |
42 |
7.5 |
2900 |
|
CDLF42-30-2 |
52 |
42 |
11 |
2900 |
|
CDLF42-30 |
61 |
42 |
11 |
2900 |
|
CDLF42-40-2 |
73 |
42 |
15 |
2900 |
|
CDLF42-40 |
81 |
42 |
15 |
2900 |
|
CDLF42-50-2 |
93 |
42 |
18.5 |
2900 |
|
CDLF42-50 |
101 |
42 |
18.5 |
2900 |
|
CDLF42-60-2 |
113 |
42 |
22 |
2900 |
|
CDLF42-60 |
122 |
42 |
22 |
2900 |
|
CDLF42-70-2 |
134 |
42 |
30 |
2900 |
|
CDLF42-70 |
142 |
42 |
30 |
2900 |
|
CDLF42-80-2 |
154 |
42 |
30 |
2900 |
|
CDLF42-80 |
162 |
42 |
30 |
2900 |
|
CDLF42-90-2 |
174 |
42 |
30 |
2900 |
|
CDLF42-90 |
183 |
42 |
37 |
2900 |
|
CDLF42-100-2 |
194 |
42 |
37 |
2900 |
|
CDLF42-100 |
203 |
42 |
37 |
2900 |
|
CDLF42-110-2 |
217 |
42 |
45 |
2900 |
|
CDLF42-110 |
225 |
42 |
45 |
2900 |
|
CDLF42-120-2 |
238 |
42 |
45 |
2900 |
|
CDLF42-120 |
247 |
42 |
45 |
2900 |
|
CDLF42-130-2 |
259 |
42 |
45 |
2900 |
|
CDLF65-10-1 |
13 |
65 |
4.0 |
2900 |
|
CDLF65-10 |
20 |
65 |
5.5 |
2900 |
|
CDLF65-20-2 |
26 |
65 |
7.5 |
2900 |
|
CDLF65-20-1 |
33 |
65 |
11 |
2900 |
|
CDLF65-20 |
40 |
65 |
11 |
2900 |
|
CDLF65-30-2 |
46 |
65 |
15 |
2900 |
|
CDLF65-30-1 |
53 |
65 |
15 |
2900 |
|
CDLF65-30 |
60 |
65 |
18.5 |
2900 |
|
CDLF65-40-2 |
66 |
65 |
18.5 |
2900 |
|
CDLF65-40-1 |
73 |
65 |
22 |
2900 |
|
CDLF65-40 |
80 |
65 |
22 |
2900 |
|
CDLF65-50-2 |
88 |
65 |
30 |
2900 |
|
CDLF65-50-1 |
95 |
65 |
30 |
2900 |
|
CDLF65-50 |
102 |
65 |
30 |
2900 |
|
CDLF65-60-2 |
110 |
65 |
30 |
2900 |
|
CDLF65-60-1 |
117 |
65 |
37 |
2900 |
|
CDLF65-60 |
124 |
65 |
37 |
2900 |
|
CDLF65-70-2 |
132 |
65 |
37 |
2900 |
|
CDLF65-70-1 |
139 |
65 |
37 |
2900 |
|
CDLF65-70 |
146 |
65 |
45 |
2900 |
|
CDLF65-80-2 |
154 |
65 |
45 |
2900 |
|
CDLF65-80-1 |
161 |
65 |
45 |
2900 |
|
CDLF85-10-1 |
14 |
85 |
5.5 |
2900 |
|
CDLF85-10 |
20 |
85 |
7.5 |
2900 |
|
CDLF85-20-2 |
30 |
85 |
11 |
2900 |
|
CDLF85-20 |
41 |
85 |
15 |
2900 |
|
CDLF85-30-2 |
52 |
85 |
18.5 |
2900 |
|
CDLF85-30 |
64 |
85 |
22 |
2900 |
|
CDLF85-40-2 |
75 |
85 |
30 |
2900 |
|
CDLF85-40 |
86 |
85 |
30 |
2900 |
|
CDLF85-50-2 |
98 |
85 |
37 |
2900 |
|
CDLF85-50 |
110 |
85 |
37 |
2900 |
|
CDLF85-60-2 |
122 |
85 |
45 |
2900 |
|
CDLF85-60 |
134 |
85 |
45 |
2900 |
|
CDLF120-10 |
18.5 |
120 |
11 |
2950 |
|
CDLF120-20-1 |
34.5 |
120 |
18.5 |
2950 |
|
CDLF120-20 |
40 |
120 |
22 |
2950 |
|
CDLF120-30 |
61 |
120 |
30 |
2950 |
|
CDLF120-40-1 |
76 |
120 |
37 |
2950 |
|
CDLF120-50-1 |
97 |
120 |
45 |
2950 |
|
CDLF120-60-1 |
118 |
120 |
55 |
2950 |
|
CDLF120-70 |
145 |
120 |
75 |
2950 |
|
CDLF150-10-1 |
12.5 |
150 |
11 |
2950 |
|
CDLF150-10 |
18.5 |
150 |
15 |
2950 |
|
CDLF150-20-1 |
35 |
150 |
22 |
2950 |
|
CDLF150-30-2 |
49 |
150 |
30 |
2950 |
|
CDLF150-30 |
63 |
150 |
37 |
2950 |
|
CDLF150-40-1 |
77 |
150 |
45 |
2950 |
|
CDLF150-50-2 |
92 |
150 |
55 |
2950 |
|
CDLF150-60 |
130 |
150 |
75 |
2950 |
感謝您訪問我們揚子江泵業的網站m.tudoujiayuan.com，如有任何水泵疑問我們一定會盡心盡力為您提供優質的服務.
Pump knowledge
浙江揚子江泵業有限公司
客服1：0577-67980815
客服2：0577-67980810
傳真：0577-67986930
地址：浙江省永嘉縣東甌街道東甌工業園區
